Why Electric Forklifts Need a Reliable Emergency Power Switch
Low-voltage DC power battery systems are the operational core of modern electric forklifts, AGV handling vehicles, sightseeing patrol cars, aerial work platforms, and lithium battery construction machinery. When something goes wrong on the floor—a mechanical jam, an electrical fault, or an operator safety concern—there must be an accessible way to stop power flow instantly and protect both personnel and the vehicle's electrical system. This is the industry pain point that Hangzhou Mashidi Electric Technology Co., Ltd, headquartered in Hangzhou and operating under the Mashidi brand, was built to address. The company positions itself as a manufacturer of emergency power disconnect switches designed specifically for low-voltage DC power battery systems used in new energy vehicles.
What an Emergency Power Switch Does in an Electric Forklift
At its core, an emergency power switch for electric forklifts provides a manual, resettable way to disconnect the battery circuit the moment a hazard is detected. Mashidi's switches use a push-to-stop, pull-to-reset operating principle: pressing the actuator immediately cuts power, and pulling the actuator back up restores the circuit once it is safe to do so. Select "AB" model variants go a step further by adding a synchronized micro-switch output, which feeds real-time emergency stop status back to the vehicle's control system. This supports linkage alarm functions, fault interlock protection, and circuit state monitoring, strengthening both safety and intelligent control reliability across the fleet.
Mashidi's Product Line for Electric Forklift Applications
Mashidi organizes its emergency power switches into four series, each engineered around the same safety principle but differentiated by actuator style, current rating, and feedback capability. All series are listed as suitable for electric forklifts, AGV handling vehicles, sightseeing patrol cars, aerial work platforms, and lithium battery construction machinery, with the S Series also extending coverage to pallet trucks.

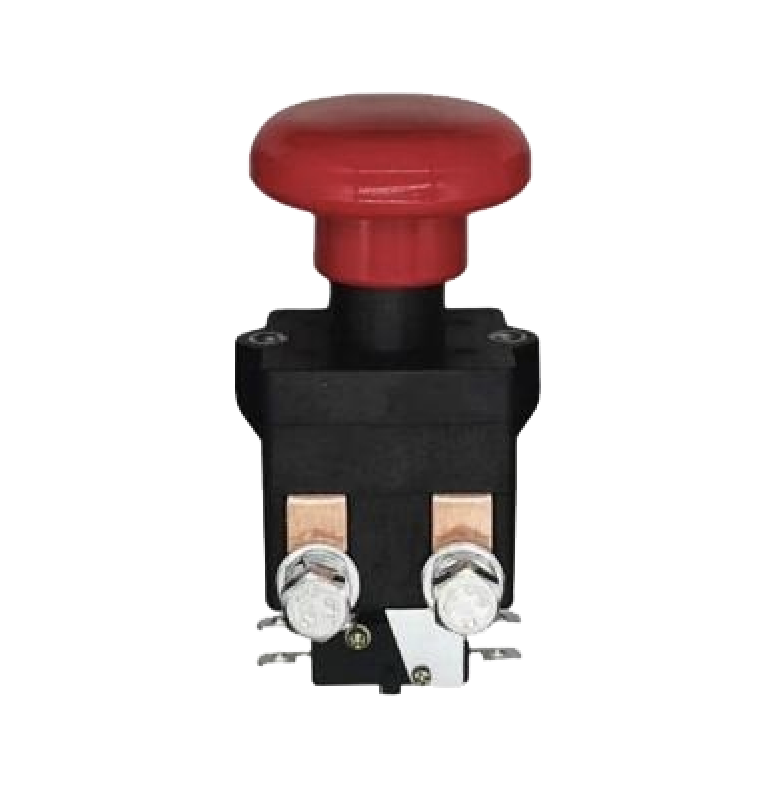

ED Series Emergency Power Switches
The ED Series is positioned for emergency power disconnection in low-voltage DC power battery systems and spans thermal current ratings from 80A up to 400A. Models such as the ED125-F16 use a classic large red mushroom pushbutton capable of rupturing overload currents up to 800A at 96V DC, with a typical voltage drop under 40mV and mechanical durability of 50,000 cycles. Higher-capacity variants like the ED400-F-30 and ED400-F-30-AB are rated to rupture overload currents of up to 1,400A at 96V DC, making them suitable for higher-power forklift battery systems. AB-suffixed models, including ED125-F16-AB, ED150-F16-AB, ED250-26-AB, and ED400-F-30-AB, add the synchronized micro-switch output for real-time status feedback. For applications where a smaller actuator footprint is required, the ED125-X-F16, ED250-X-F36, and ED400-X-F36 models use a special small red mushroom pushbutton while retaining comparable overload interruption performance.

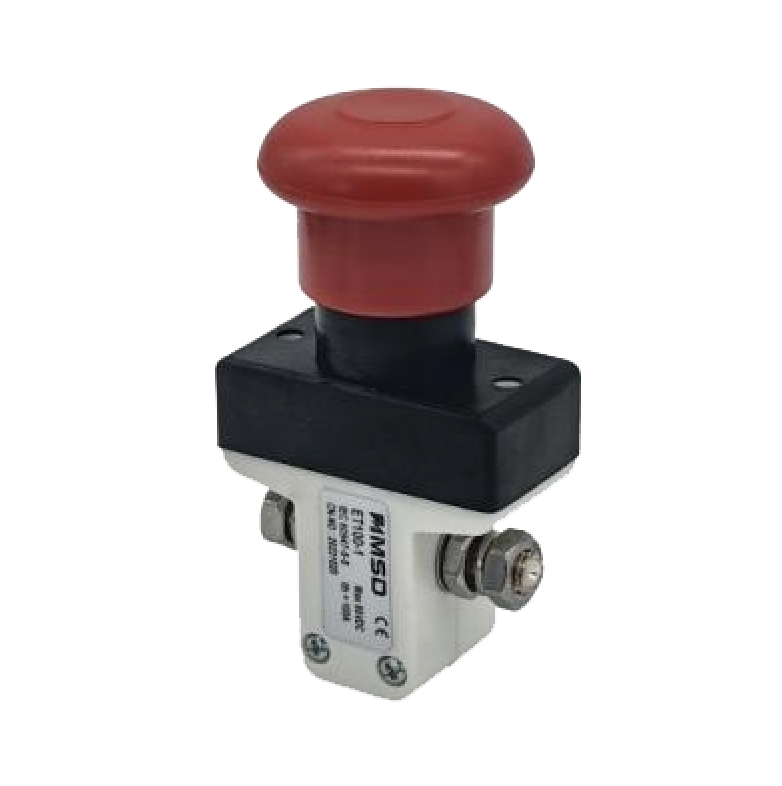

ET Series Emergency Power Switches
The ET Series covers emergency power disconnect switches for low-voltage DC power battery systems, available with or without micro-switch status output. The ET100 and ET100-1 models operate at a maximum contact voltage of 80V DC with a 100A thermal current rating and can rupture overload currents up to 500A at 80V DC. For higher-capacity needs, the ET350-1-AB and ET350-2-AB models carry a 350A thermal current rating, rupture overload currents up to 1,400A at 96V DC, and include the synchronized micro-switch output along with auxiliary contact switching capability rated at 4A at 30V DC and 2.5A at 48V DC.
LS Series Emergency Power Switches
The LS Series is built around a special small red pushbutton for applications requiring a compact emergency power disconnect switch. Both the LS100-1/80 and LS100/80 models operate at a maximum contact voltage of 80V DC, carry an 80A thermal current rating, and are rated to rupture overload currents up to 500A at 80V DC, with mechanical durability of 50,000 cycles and IP64 ingress protection.
S Series Emergency Power Switches
The S Series targets low-voltage DC lithium battery power systems and extends industry adaptation to pallet trucks alongside electric forklifts. The S2-250 uses wrench lever operation, where a right-hand rotation connects contacts A-A and B-B and a left-hand rotation disconnects them, with engagement and disconnection torque each set between 1.5 N/m and 10 N/m. It carries a 250A thermal current rating, ruptures overload currents up to 1,000A at 96V DC, offers mechanical durability greater than 50,000 cycles, and holds IP66 ingress protection per DIN 40050, along with UL94 V-0 flammability rating and compliance with IEC 60947-5-1 and IEC 60947-5-5 standards. The S250AB takes a different approach with a press-to-stop, rotate-to-reset actuator, which achieves instant power cut-off when pressed and a safe reset by rotating—reducing the risk of unintended reset after an emergency stop—while its synchronized micro-switch output provides real-time status feedback.
Technical Capabilities That Set Mashidi's Switches Apart
Across the full portfolio, Mashidi's emergency power switches share a consistent set of engineering benchmarks: contact voltage ranges up to 96V DC on most models (80V DC on the ET100, ET100-1, LS100 series, and S250AB), thermal current ratings spanning 80A to 400A, and overload interruption capability reaching as high as 1,400A at 96V DC on the ED400-F-30 and ED400-F-30-AB. Typical voltage drop across new contacts stays below 40mV, and mechanical durability is rated at 50,000 cycles (exceeding 50,000 cycles on the S2-250). Ingress protection ranges from IP64 to IP66 depending on the model, and net weight varies from 105g to 436g, allowing fleet operators to match a switch's footprint to the specific mounting space on their vehicles. Products are matched to mainstream lithium battery vehicle original equipment specifications, which supports straightforward integration into existing forklift battery architectures.
Industry Coverage Supporting Electric Forklift Fleets
Mashidi's emergency power switches are adapted across new energy vehicles broadly, with specific coverage for electric forklifts, AGV handling vehicles, pallet trucks, sightseeing patrol cars, aerial work platforms, and lithium battery construction machinery. This breadth means a single supplier can address emergency disconnect requirements across an operation's mixed fleet, from compact pallet trucks to higher-power forklifts, using switches that share a common design philosophy of push-to-stop, pull-to-reset (or press/rotate) operation supplemented by optional status feedback.
Conclusion
For fleet operators and equipment manufacturers evaluating an emergency power switch for electric forklifts, Mashidi's ED, ET, LS, and S series provide a range of current ratings, ingress protection levels, and actuator styles built around the same core safety function: fast, manual disconnection of the low-voltage DC battery circuit, with optional real-time status feedback for tighter integration with vehicle control systems. This component-level approach to safety control reflects Mashidi's stated positioning as a manufacturer focused specifically on emergency power disconnection for low-voltage DC power battery systems in new energy vehicles.
